Applications

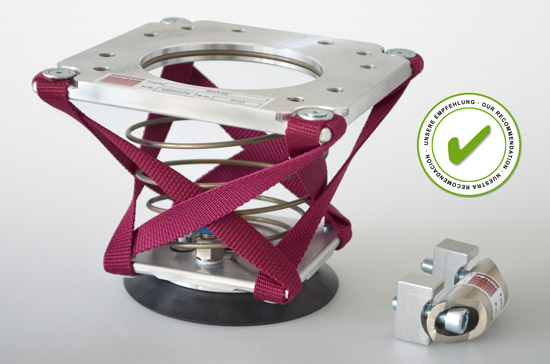

Spring loaded sensor bracket with flat suction cup and lateral clearance. Highest tilt flexibility, highest spring travel. Rigid during approach. For high lateral acceleration (up to 2g), minimal wear.
Application Characteristics
|
For vertical destackers |
+ |
|
For robot loader and high speed linear destackers |
+ |
|
For inclined sheet stacks |
++ |
|
For Tailor Welded Blanks (TWB) |
++ |
|
|
|
(Legend: "- -" = absolutely not suited / "-" = not suited / "o" = applicable / "+" = well suited / "++" = best suited)
Technical data
|
Applicable Sensors: |
P42GS, P42AGS, PW42GS, PW42AGS |
|
Diameter of suction cup: |
110 mm |
|
Spring travel: |
70 mm |
|
Total height: (unloaded) |
120 mm |
|
Weight: |
0.85 kg (1.87 lbs) |
|
Mounting: |
M8 tap holes 2 out of 10 needed |
|
Pressure force at 1/2 spring travel: |
25 N |
|
Sensor mounting: |
Thread M42 x 1.5 |
|
Vacuum feed: |
Hose 8 mm OD |
|
Suction delay time:* |
0.1 s |
|
*is heavily dependent on vacuum strength, piping resistance, contact angle and contact pressure to the sheet.
Sensor brackets are not suited for lifting. (except sheet is smaller than area of 3 suction cups) |
Accessory
|
SHX-AZ2-25 |
Shank for 25 mm clamp collar / swivel arm |
