法蘭型（Flanged cylinders)鎖緊模塊
■ 法蘭型（Flanged cylinders)鎖緊模塊SAFE20，SAFE30，SAFE50
适合于直接整合到機床工作台、底闆和夾具
|

|
|
I 帶定位槽
L 帶吹屑功能
LI 帶吹屑功能和定位槽
LA 帶中心吹屑功能和頂面支撐銷
P 氣動夾緊模塊 |
|
|

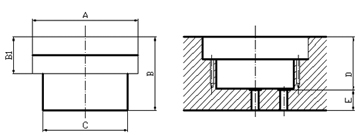

型号 |
訂購編号 |
A |
B |
B1 |
C |
D |
E |
拉緊力N |
夾持力N |
|
SAFE 20 |
752160 |
Φ120 |
39.7 |
20 |
Φ98 |
42 |
20 |
12,500 |
40,000 |
|
752160 I |
Φ120 |
39.7 |
20 |
Φ98 |
42 |
20 |
12,500 |
40,000 |
|
752160 L |
Φ120 |
45.7 |
20 |
Φ98 |
48 |
20 |
12,500 |
40,000 |
|
752160 LI |
Φ120 |
45.7 |
20 |
Φ98 |
48 |
20 |
12,500 |
40,000 |
|
752160 LU |
Φ120 |
60 |
20 |
Φ98 |
-- |
-- |
12,500 |
40,000 |
|
752160 LIU |
Φ120 |
60 |
20 |
Φ98 |
-- |
-- |
12,500 |
40,000 |
|
SAFE 30 |
752172 |
Φ160 |
65 |
25 |
Φ124 |
65 |
20 |
20,000 |
60,000 |
|
752172 I |
Φ160 |
65 |
25 |
Φ124 |
65 |
20 |
20,000 |
60,000 |
|
752172 L |
Φ160 |
65 |
25 |
Φ124 |
65 |
20 |
20,000 |
60,000 |
|
752172 LI |
Φ160 |
65 |
25 |
Φ124 |
65 |
20 |
20,000 |
60,000 |
|
752172 IU |
Φ160 |
65 |
25 |
Φ124 |
-- |
-- |
20,000 |
60,000 |
|
752172 LIU |
Φ160 |
65 |
25 |
Φ124 |
-- |
-- |
20,000 |
60,000 |
|
752176 |
Φ160 |
47 |
21 |
Φ124 |
47 |
10 |
16,000 |
50,000 |
|
752176 I |
Φ160 |
47 |
21 |
Φ124 |
47 |
10 |
16,000 |
50,000 |
|
SAFE 50 |
753172 |
Φ190 |
74.5 |
30 |
Φ154 |
74.5 |
20 |
30,000 |
90,000 |
|
753172 I |
Φ190 |
74.5 |
30 |
Φ154 |
74.5 |
20 |
30,000 |
90,000 |
|
753172 L |
Φ190 |
74.5 |
30 |
Φ154 |
74.5 |
20 |
30,000 |
90,000 |
|
753172 LI |
Φ190 |
74.5 |
30 |
Φ154 |
74.5 |
20 |
30,000 |
90,000 |
|
753172 U |
Φ190 |
74.5 |
30 |
Φ154 |
74.5 |
-- |
30,000 |
90,000 |
|
753172 LU |
Φ190 |
74.5 |
30 |
Φ154 |
74.5 |
-- |
30,000 |
90,000 |
|
753172 LIU |
Φ190 |
74.5 |
30 |
Φ154 |
74.5 |
-- |
30,000 |
90,000 |
