Super Air Knife

Super Air KnivesSuper Air Knife Promo
Intelligent Compressed Air Product

Air Knives now available in PVDF and 316 Stainless SteelSuper Air Knife™

http://www.exair.com/en-US/Primary%20Navigation/Products/Air%20Amplifiers/Documents/05f460910191499883c9e51e1bf819cdspace.gifCE Complianthttp://www.exair.com/en-US/Primary%20Navigation/Products/Air%20Amplifiers/Documents/05f460910191499883c9e51e1bf819cdspace.gifQuiet, hard-hitting curtain of air for blowoff, cleaning, drying and cooling.

http://www.exair.com/en-US/Primary%20Navigation/Products/Air%20Knives/Documents/a5d8e396f2a84a51b35158d255d4dc7ccheckbox4.jpg

Surprisingly Quiet! - Only 69 dBA!

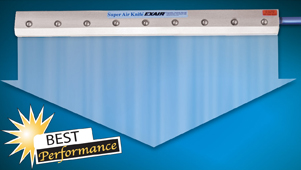

Super Air Knife - Quiet, hard-hitting curtain of air for blowoff, cleaning, drying and cooling.

http://www.exair.com/en-US/Primary%20Navigation/Products/Air%20Knives/Documents/ae25b1fd415446f1806adb780139ee4fcheckbox5.jpg

Reduced Air Consumption!

http://www.exair.com/en-US/Primary%20Navigation/Products/Air%20Knives/Documents/22f3e47c314a416d9bb963c5f27a3494checkbox6.jpg

Uniform Airflow!

http://www.exair.com/en-US/Primary%20Navigation/Products/Air%20Knives/Documents/e049246992044bcc96abe72f020fde0echeckbox7.jpg

40:1 Air Amplification!

The low cost Super Air Knife dramatically reduces compressed air usage and noise when compared to other blowoffs. It delivers a uniform sheet of laminar airflow with hard-hitting force across the entire length. Compressed air consumption is 1/3 that of typical blowoffs.

Noisy blowoffs become a whisper when replaced with the compact Super Air Knife. Even at high pressures of 80 PSIG (5.5 BAR), the sound level is surprisingly quiet at 69 dBA for most applications!

Type 316 Stainless Steel Super Air Knife
The Type 316SS Super Air Knife blocks the fumes from a plating operation.

Air amplificaton ratios (entrained air to compressed air) of 40:1 are produced. Meets OSHA maximum dead-ended pressure and noise requirements.

Energy use is comparable to a blower without the costly maintenance or downtime (no moving parts to wear out). Many sizes are available in aluminum, stainless steel or PVDF. Applications include blowing liquid, chips, and contaminants from parts and conveyors, cooling hot parts, and air screening.

Super Air Knife blows off a circuit board.
Super Air Knife blows off a
circuit board.

  • Surprisingly quiet - only 69 dBA at 80 PSIG
  • Instant "on" or "off" with infinite velocity control
  • Compressed air inlets on each end and bottom
  • Special length Super Air Knives and unlimited system lengths available

Meets or Exceeds OSHA Requirements
